Plant Oil Extraction Short Path Wiped Film Evaporator Molecular Distillation
Get Latest Price
US$ 42000
≥1 Sets
Quick Details
Applicable Industries:
Lab
Place of Origin:
Henan, China
Brand Name:
Effison
Voltage:
380V/50HZ or 460V/60HZ
Product Details
Product Description
Plant Oil Extraction Short Path Wiped Film Evaporator Molecular Distillation
Plant Oil Extraction Short Path Wiped Film Evaporator is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Short Path Wiped Film Evaporator is especially suitable to separate substances of high boiling point, heat sensitive and easy oxidized.
Main application field: Separation process in trades like Food, Fine chemical, Electronic materials, Polymers (Polyols, fatty acids, polyphenols-compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), etc.
Specifications of Plant Oil Extraction Short Path Wiped Film Evaporator:
|
DZL-20 |
DZL-50 |
|
|
Sturucture Material |
S tainless S teel 304 (Standard) , SS316 (Option) |
|
|
Temperature Range |
RT~200/300℃(Depneds on the hetaer) |
|
|
Evaporation Surface |
0.2m 2 |
0.5m 2 |
|
Inner Conden sing Surface |
0.35m 2 |
0.85 m2 |
|
Feeding Speed |
8~24L/h |
20~60L/h |
|
Stir Power |
150W |
500W |
|
Diameter |
150mm |
200mm |
|
Rotating Speed |
50~300rpm |
40~250rpm |
|
Flim System |
Wiped Filming System |
|
|
Vacuum Degree |
0.001mbar(depend on the nature of material and vacuum pump) |
|
|
External Size(L*W*H) |
1200*800*2000 mm |
1200*800*2500mm |
|
Voltage |
Single Phase 220V/60Hz |
|
|
Heater |
Standard or customized |
|
|
Chiller |
Standard or customized |
|
Detailed Images

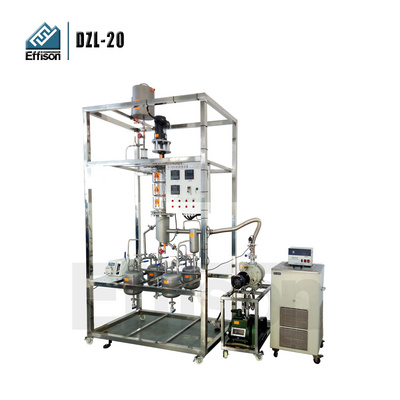

DZL-20 Plant Oil Extraction Short Path Wiped Film Evaporator:
DZL-50 Plant Oil Extraction Short Path Wiped Film Evaporator:
——Design
Waped Film Evaporator
are horizontal evaporator with wiper basket, gear motors and external condenser.
The vapour nozzle is typically arranged at the upper end of the evaporator in order to facilitate the transfer of the vapours to the external condenser.
We
offer thin film evaporators from 0.058 to 3 m2 .
——Operation
Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.
——Particular features
Continuous distillation process.
Low operating pressures (100~10000Pa ,100Pa=1mbar).
Short residence time.
High evaporation rates.
Processing of high-boiling, high-viscosity or crystallizing products is possible.
Can be used as a reboiler for column.
Low fouling on evaporator wall.
——Fields of application
For separation of large quantities of components with high volatility.
For residue removal or decolorization.
For products with high-viscosity and easy to crytallizate.
For heat sensitive material
