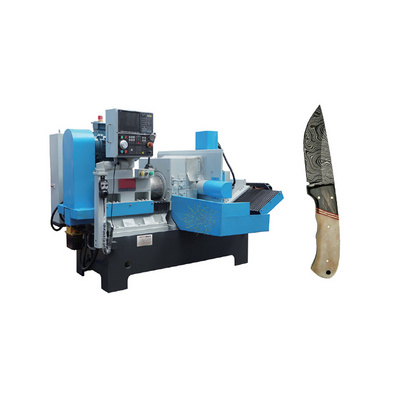

Servo chopping boot knife sharpeners carbide knife sharpening grinding machine

Product Description

Applicable to ceramic knives, daggers and other knives/scissors are with high requirements for single-sided flat grinding, cutting edge, bevel surface, re-polish grinding or blade back-edge grinding .

Design specially for high-end knives such as daggers and pocket knives. Adopts Huazhong CNC 4-aixs control system, programs can be automatically generated by system with complete and valid DXF graph file upload or input manually through the panel. It is a special system for the knife grinding machine. It is simple and quick to realize the linear and circular interpolation grinding by controlling the feed speed and feed amount of X-axis, Y-axis,Z-axis and A-axis;which optimizes the grinding characteristics of the machine.

Parameters

---------------

Item	GH-4Z450YZS
Main motor power	15KW
Main shaft rotate velocity	1280rpm
CNC system	4-axis Huazhong
Main shaft box max. travel	150mm
Knife rest valid travel	Gindable length 380mm
Swift angle	+35° -35°
Grinding wheel specification	Barrel wheel φ350xφ270x125mm

Advantages

1. CE/ ROHS approved

2. The CNC control system has various intelligent operation modes, such as Jog, Increment, Electronic hand-wheel and Automatic grinding, as well as automatic compensation function of the grinding wheel and etc,.It can also finish grinding at the same ti me of the bevel and plane surface clamping at one time. The basic components of the machine are designed reasonably, with strict material selection, well-equipped auxiliary units,Via the parameter setting of the CNC system, the precision error caused by the gap of ball screw can be eliminated, and the stability and uniformity of the mass production of the product can be ensured.
