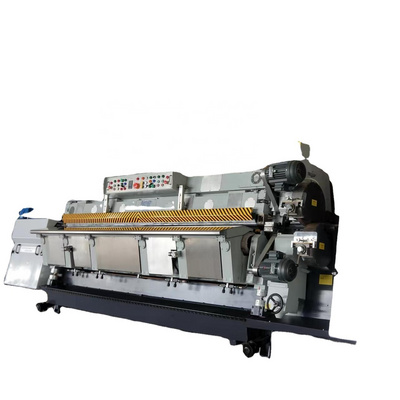

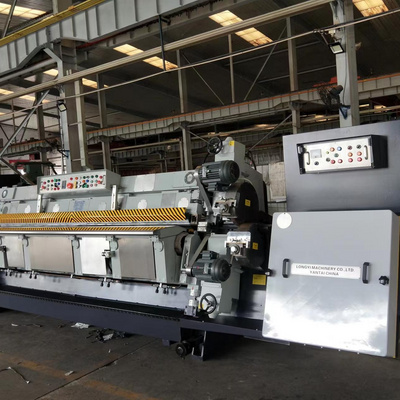

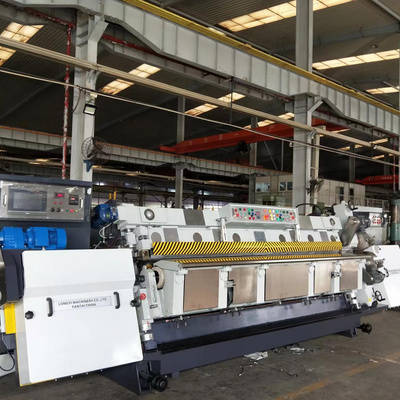

high precision leather splitting machine for limed hides or wet blue hides or dried hides leather dividing machine

SCIMATIC5-3000(LIME) is equipped with Extractor GLP-300 which is domestic initiative, the feeding speed of the splitting machine is 0-30M adjustable, splitting precision is ±0.16mm. Extractor GLP-300 is an important equipment for the splitting machine, its fluent extract function can save lots of labor force, increase the splitting precision, simultaneously, the machine can up-turn and flip freely, which extends the operating space and convenient the work environment. The machine has many advantages among similar foreign products. Advantages of Extractor GLP-300
Variable frequency speed control, which matches the splitting speed and extract speed optimumly
The pressure of six pressing rollers can be adjusted respectively, secure the optimum extract force in all the best position.
All parts are made of high quality stainless steel, extends the service life.

Lime / Liming

The first step in the liming drum is the soaking of the hide.

Using water, the raw material is cleaned of any natural hide dirt.

The main objective in soaking the hide is to restore it to its natural condition as on the living animal with a water content of approximately 65%

After this, the liming takes place in the same drum.

Here, substances that can´t be turned into leather, such as natural oils and proteins, are washed out of the hide.

By adding lime and sodium sulphide, the ph-value during the dispensing process is raised. By doing so, hair is chemically removed from the surface of the hide.

Soaking and liming are carried out in one process, which typically lasts from 24 to 36 hours.

The limed and dehaired hide is now called pelt.

Fleshing

In the fleshing excess flesh and fatty tissue from under the pelt is removed mechanically.

Afterwards, the defleshed pelt is trimmed. During this process, the sections of the root of the tail, the navel, the kneecaps, and other unwanted parts of the hide are cut off.

Splitting

A bandknife is used to split the pelt horizontally into a grain split and a flesh split.

The grain or leather split is later processed into upper leather.

The flesh split is usually processed into split leather, but is here supplied to the gelatin industry. It is far too thin to be used as split leather, because the leather split is cut extra thickly.

Tanning

The central flow of work during leather fabrication is the tanning, which takes about 20 hours and follows a special formula carried out in a drum.

Until it is tanned, the hide is perishable. Only by tanning is the hide preserved and made durable.

This process is made up of five steps, which take place one after another in the tanning drum: deliming, bating, pickling, tanning, and basification.

During the first step - deliming -, the lime added in the liming drum is released, this step is carried out using carbon dioxide, which is very environmentally friendly.

During the next step - bating-, collagen and other proteins are removed in a regulated way by the use of enzymes. By doing this, the fibers become more flexible and the leather becomes softer.

In the pickle, the ph-value of the hide is lowered by adding acid and salt to prepare the hide for the addition of tanning agent.

When the hide has reached a ph-value of about 3 throughout its full width, it is ready for the adding of the tanning agent..

A wide variety of substances can be used for tanning.

Chromium, the most widely used and the most eco-friendly tanning agent available.

Chromium is a natural, non-toxic element and is actually a micronutrient found in our food.

When the ph-value is low, the chromium molecules are very small and can therefore easily penetrate the hide and become incorporated in the skin fibers

During basification, the pH-value is now slightly raised, which makes the chromium particles in the hide grow larger and connect with the skin collagen in at least two places.

This connection between tanning agent and hide material is called tanning.

The chromium tanning dyes the hide into a bluish color; therefore, after tanning it is called ”wet blue”.

Sammying / cutting

The wet blues, which are soaking wet, are placed on the sammying machine and two felt rollers press out a part of the water under high pressure.

Afterwards, the complete hide is cut into two sides, because sides are easier to be handled in further processing.
